Steam Moisture Separator - GS1
We adhere to customer-oriented principles and drive innovation through technology, providing comprehensive services from product selection to technical consultation, helping enterprises enhance steam system efficiency and create greater value.
Detailed Introduction
STEAM-WATER SEPARATOR
Merits
Gas-water separators separate steam and drip in the steam on the basis of inner geometrical figure and principle of different flowing of steam and water,so as to increase steam dryness to assure operation.
1.Improvement of steam dryness,assurance of using temperature of steam using equipment,and improvement of heat efficiency of the equipment.
2.Separation of condensate in front of steam using equipment to prevent water hammer.
3.Adoptable for separation of separation of various kinds of gases and liquids.
汽水分离器/STEAM-WATER SEPARATOR
Technique parameter
产品型号 Product model | 技术参数/Technique parameter | |||
阀体材料 Valve body materials | PMA（Mpa） | 最高允许温度（℃） Maximum allowable temperature | 适用介质 Used medium | |
GS3 GS1、GS7 GS13 | 铸铁 Cast-iron 碳钢 Carbon steel 碳钢 Carbon steel | 1.6 1.6 2.5 | 220 420 420 | 蒸汽、气体、凝结 水Steam、Gas、Condensate water 蒸汽、气体、凝结水 Steam、Gas、Condensate water 蒸汽、气体、凝结水 Steam、Gas、Condensate water |
The materials of primary accessories
零部件名称 Part and component name | 材质 Material |
阀体、阀盖 Valve body、Valve cover | 铸铁、碳钢 Cast-iron、Carbon steel |
滤罩 Filtration cover | 不锈钢 Stainless steel |

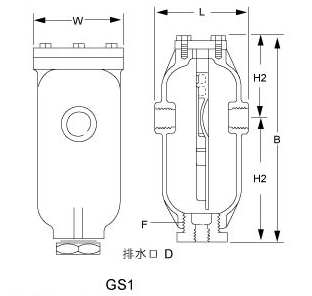

Prime out-form dimensions and weigh
产品型号 Product model | 口径(DN) Calibre | L法兰 Flange | L螺纹/ 焊接 Thread/ welding | H1 | H2 | D（排口） Vent | 使用压力 范围(MPa) Pressure change range | 公称压力 (MPa) Nominal pressure |
GS1 | 15-25 | 210 | 135 | 115 | 145 | 丝口 | 0.1-2.5 | 2.5 |
Note
1.To offer joining size and flange standard.
2.To assure proper installation and clean out impurities inside.
