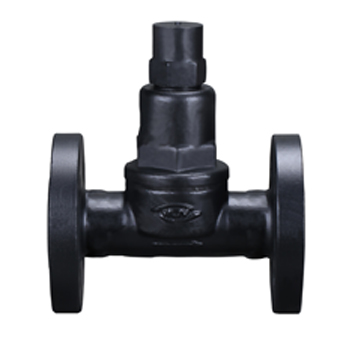

Adjustable Bimetal Steam Trap - TB11
We adhere to customer-oriented principles and drive innovation through technology, providing comprehensive services from product selection to technical consultation, helping enterprises enhance steam system efficiency and create greater value.
Detailed Introduction
Bimetallic Trap
The thermo-sensitive element of bimetallic trap is a bimetallic element cast through a special process by two metals of different expansion ratio.When the bimetallic element expands after heated,different expansion ratio results in bending.The thermo-sensitive element produced on the basis of this quality can act as a switch.Bimetallic Traps are divided into adjustable offline (BK,CS17H and CS47) and online (adjustable bimetallic element TB).
Merits
1.Discharge temperature adjustable online by free installation posture.
2.High-temperature condensate water used to form water seal so as to effectively reduce steam leakage.
3.Flexible and noiseless,water hammer resistant,and good emptying performance.
4.Simple structure,easy to maintain and repair.
5.Adoptable for steam main pipes,gas distribution cylinders,steam tracing pipes,radiators,low-temperature heating trough,double layered pots and so on.
6.Adoptable for high-temperature steam pipes,gas distribution cylinders and so on.
Performance

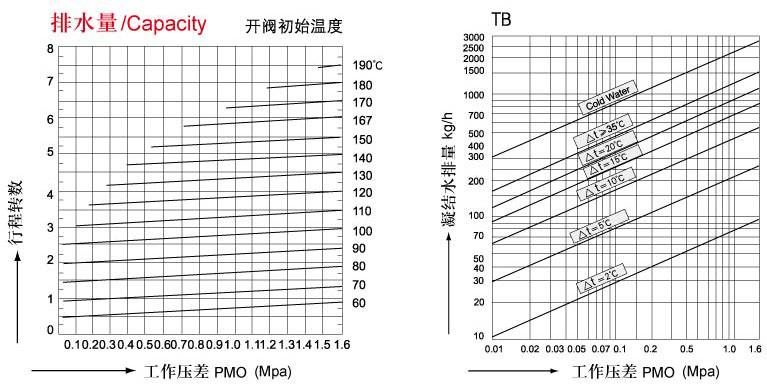

Capable of adjusting the discharge temperature of condensate water so as to make effective use of its sensible heat.
Existing condensate water in front of the valve to form water seal to prevent steam leakage.
Capable of installation in any direction and water discharge temperature adjustable at any time.
Long durability thanks to washing and corrosion resistant alloy sphere valve core and stainless valve seat.
可调双金属片式疏水阀/BIMETALLIC TRAP WITH ADJUSTABLE TEMPERATURE
技术参数/Technique parameter
壳体压力等级 Shell pressure grade | 负荷泄漏率 Load leakage | 使用介质 Used medium | 允许背压率 Permitted backpressure rate | 节能效果 Energy saving effect | 适用过热蒸汽 Use superheated steam |
1.6、 2.5、 4.0、 6.4、 10MPA | 0% | 蒸汽、凝结水 Steam、 Condensate water | ≥75% | 优秀 Excellence | 适应 Adaption |
最大工作压差 Maximum operating pressure differential | 抗冻性 Freezing resistance |
最高允许温度 Maximum allowable temperature
| 排空气装置 Air exhaust system | 抗水击 Resis | |
10.0MPA | 优秀 Excellence | 420℃ | 自动 Automatic | 适应 Adaption | |
主要零件材料/The materials of primary accessories
零部件名称 Part and component name | 材质 Material |
阀体、阀盖 Valve body、Valve cover | 锻钢、不锈钢 Forged steel、Stainless steel |
双金属片 Bimetal | 不锈钢金属 Stainless steel |
阀座、阀瓣 Valve seat、Valve clack | STL合金钢、高铬不锈钢 STL alloy、High chrome stainless steel |
过滤网 Filtrating screen | 不锈钢 Stainless steel |

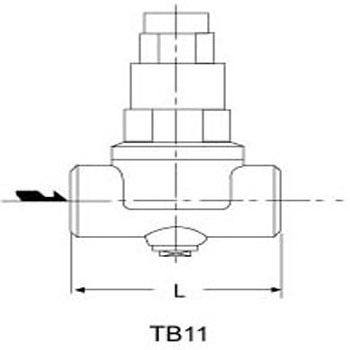

外形尺寸和重量/Prime out-form dimensions and weigh
产品型号 Product model | 口径(DN) Calibre | L法兰 Flange | L螺纹/ 焊接 Thread/ welding | H1 | H2 | W | 重量(kg) weight | 使用压力 范围(MPa) Pressure Change range | 公称压力 (MPa) Nominal pressure |

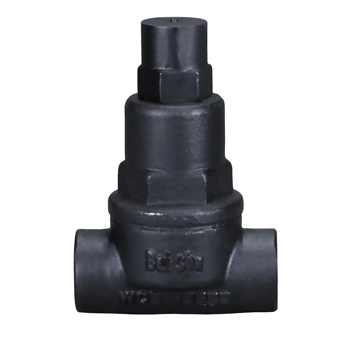

TB11 TB11W | 15~20 25 | - | 90 95 | 112 | 23 26 | 62 | 1.5 | 0.1-1.6 | 2.5 |
TB11F | 15~20 25 32~50 | 150 160 230 | - | 112 112 160 | 23 26 75 | 62 62 120 | 3.2 3.5 13 | 0.1-1.6 | 2.5 |
TB11F （自制体） | 15~50 32~50 | 230 200 | - | CL300 - | |||||
TB11F （DN25体） | 32~40 | 170 | - |
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
4.TB3 and TB5 same,TB6 and TB11 same.
