Capsule-Type Steam Trap - TS
We adhere to customer-oriented principles and drive innovation through technology, providing comprehensive services from product selection to technical consultation, helping enterprises enhance steam system efficiency and create greater value.
Detailed Introduction
Bellows Trap
The main acting unit of bellows,which is filled with a ytpe of liquid with gasification temperature lower than water's saturation temperature.When the device just starts,there appears condensate with low temperature in conduits and the liquid in the bellows is in the condensed state.The trap is turned on.When the temperature of condensate water gradually goes up,the liquid in the bellows begins to vaporize and the pressure within it increases.Consequently,the film drives the valve core to move towards the closing direction.Before the condensate water reaches its saturation temperature,the trap is completely shut down.The bellows controls the opening and closing of valves in accordance with steam temperature changes so as to resist steam and discharge water.Available are two alternative bellows with opening temperature 15℃ or 30℃ lower than saturation temperature.
There is high temperature condensate in front of the (steam pressure balance type) when it works, and there is no steam leakage, so the energy saving effect is significant.
Bellows trap,among all existing steam pipes,are presently the ideal substitute of low-pressure (with pressure below PN25)hot motive (disc)traps or bimetallic elements traps (with pressure below PN16).
1.Quick acting speed and zero leakage.
2.Simple structure and convenient maintenance.
3.All components made of alloy-treated stainless steel,resistant to wearing,gas corrosion,long durability.
4.Good emptying capability with quick discharge and easy installation.
5.Capable of combination of multiple bellows,suitable for large discharge.
6.Good air discharge capability,with coldness resistance,zero leakage and backpressure of 75%.
膜盒式疏水阀/BELLOWS TRAP
技术参数/Technique parameter
壳体压力等级 Shell pressure grade | 负荷泄漏率 Load leakage | 使用介质 Used medium | 允许背压率 Permitted backpressure rate | 节能效果 Energy Saving effect |
最大工作压差 Maximum operating pressure differential |
1.6、 2.5MPA | 0% | 蒸汽、凝结水 Steam、 Condensate water | 75% | 优秀 Excellence | 1.6MPA
|
最小过冷度 Minimum subcooled temperature | 排水方式 Drainage method | 最高允许温度 Maximum Allowable temperature | 排空气装置 Air exhaust system | 抗冻性 Freezing resistance | 抗水击 Resis |
0℃ | 间接方式 Indirect way | 350℃ | 自动 Automatic | 优秀 Excellence | 适应 Adaption |
主要零件材料/The materials of primary accessories
零部件名称 Part and component name | 材质 Material |
阀体、阀盖 Valve body、Valve cover | 锻钢、不锈钢 Forged steel、Stainless steel |
膜盒 Bellows | 哈氏合金 Hastelloy alloy |
阀座 Valve seat | STL合金 STL Alloy |
过滤网 Filtrating screen | 不锈钢 Stainless steel |
外形尺寸和重量/Prime out-form dimensions and weigh

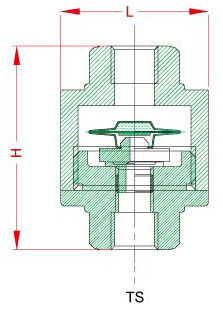

产品型号 Product model | 口径(DN) Calibre | L法兰 Flange | L螺纹/ 焊接 Thread/ welding | H1 | H2 | W | 重量(kg) weight | 使用压力 范围(MPa) Pressure change range | 公称压力 (MPa) Nominal pressure |
TS | 15~20 | - | 65 | - | - | 47 | 0.5 | 0.1-1.6 | 2.5 |

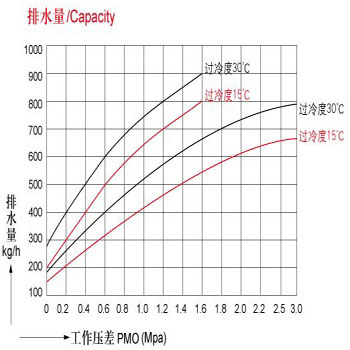

Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
