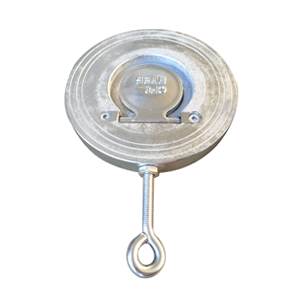

DISC CHECK VALVE
We adhere to customer-oriented principles and drive innovation through technology, providing comprehensive services from product selection to technical consultation, helping enterprises enhance steam system efficiency and create greater value.
Detailed Introduction
Butterfly disc check valve is a valve that automatically opens and close valve discs depending on the flow of the medium itself, and it is also used to prevent the backflow of the medium. It is also called the check valve, check valve, counterflow valve and back pressure valve. Check valve is a kind of automatic valve, its main function is to prevent the reverse flow of the medium, prevent the reversal of the pump and drive motor, and the discharge of the container medium. The check valve can also be used to provide a supply line for the pressure in which the pressure may be raised above the system pressure auxiliary system. The check valves can be mainly divided into rotary check valves (center of gravity rotation), lifting check valves (moving along the axis), butterfly disc check valves (along the center).
Effect
The function of a butterfly check valve is to allow only the medium to flow in one direction, and to prevent the flow of direction. Usually, the valve is automatically operated. Under the action of a fluid pressure flowing in one direction, the valve flap opens. When the fluid flows backward, the flow pressure and the self closing valve of the disc are acting on the valve seat to cut off the flow.
碟片式止回阀DISC CHECK VALVE
Material for the main parts：
零件名称 Part name | 阀体、阀盖、 阀瓣 Valve body, valve cover, valve disc | 密封面 Sealing surface | 摇杆 rocker | 销轴 Pin shaft | 垫片 Shim |
零件材料 Part material | 碳钢 carbon steel | 堆焊硬质合金 Hardfacing hard alloy | 碳钢 carbon steel | 铬不锈钢 Chromium stainless steel | 柔性石墨+304 Flexible graphite+304 |
Technical parameter
公称通径Nominal path | DN(mm) | 40～800 |
公称压力Nominal pressure | PN(Mpa） | 1.0～2.5 |
缓闭时间Slow closing time | 3～60s | |
适用介质Applicable medium | 清水、污水、海水 | |
适用温度Applicable temperature | 0～80℃ |
Part material
名称Name | 材料Material |
阀体Valve body | 灰铸铁、铸钢、不锈钢等Grey cast iron, cast steel, stainless steel, etc |
阀盖Valve cover | 钢板、不锈钢Steel plate、 stainless steel |
阀瓣Valve clack | 丁腈橡胶NBR |
阀轴Valve shaft | 不锈钢Stainless steel |
Prime out-form dimensions and weigh
产品型号 Product model | 外径 External diameter | 内径 Internal diameter | 厚度 Thickness | 重量 weight | |
14.2CM | 3.5CM | 1.9CM | 2.1KG |
Installation matters
The installation of the check valve should be paid attention to the following:
1. Do not bear the weight of the check valve in the pipeline. The large check valve should be supported independently so that it is not affected by the pressure produced by the pipe system.
2. When installing, the direction of the flow of the medium should be in accordance with the direction of the valve.
3. The lifting type vertical valve should be installed on the vertical pipe.
4. The lift horizontal valve check valve should be installed on the horizontal pipe
Installation and use
1, the valves at both ends of the valve must be blocked, and there is a dry and ventilated room. Corrosion protection should be regularly checked for long-term storage.
2, before installation, the valve should be cleaned and the defects caused in the transportation process are eliminated.
3, the installation must carefully check the sign on the valve and whether the nameplate is in accordance with the requirements.
4. The valve is installed on the horizontal pipe and the valve cover is upwards.
