上装偏心半球阀

上装偏心半球阀  Install eccentric ball valve

结构特点及用途Structural characteristics and uses

1、压力损失小：全开时水损为零，流道完全畅通，且介质不会沉积阀体中腔内。

2、耐颗料磨损：V 形开口的球冠与金属阀座之间具有剪切作用，在关闭过程中，只在 最后一刻球冠才靠向阀座，不形成摩擦，且阀座用耐磨的镍合金制成，不易被冲刷磨 损，因而适用于含纤维、微小固体颗粒、浆等。

3、适合高流速介质：直通流道，坚固的偏心曲轴使之适合高流速且无振动。

4、寿命长：无易损部件，由于偏心作用，阀门启闭时密封面间无摩擦，则使用寿命长。

5、维修方便：阀门维修时不需从管路上拆下，只要打开阀盖即可进行维修。

6、广泛适用于水、污水、含微固体颗粒、水、蒸汽、煤气、天然气、油品等。

1、Pressure loss:full-time water loss is zero,flow completely smooth,medium body will not be deposited in the cavity.

2、Granule abrasion resistance:V-shaped opening of the spherical cap and the shear effect between the metal valve seat,in the closing process,only the crown at the last moment before their eyes the ball valve seat,not the formation of friction and resistant seat grinding of nickel alloys,cannot easily be washed and wear,which applies to Contain fiber,small solid particles,pulp,etc.

3、Suitable for high-velocity medium:direct flow,strong eccentric-crank to fit the high velocity and no vibration.

4、Long life:no wearing parts,as eccentric,open and close the valve when the friction between the sealing   surface,then the long service life.

5、Easy maintenance:valve repair without removing the road from the tube,simply open the valve cover can be  repaired.

6、Widely used in water,sewage,solid particles containing micro-,water,steam,gas, natural gas,oil and so on.

执行标准 Implementation of standards

1、设计和制造Design and manufacture:GB/T12237-1989

2、检验和试验Inspection and test:GB/T 13927-1992

3、法兰连接Flange connection:GB/T9113.1-2000

4、结构长度Structure length:JD-2004

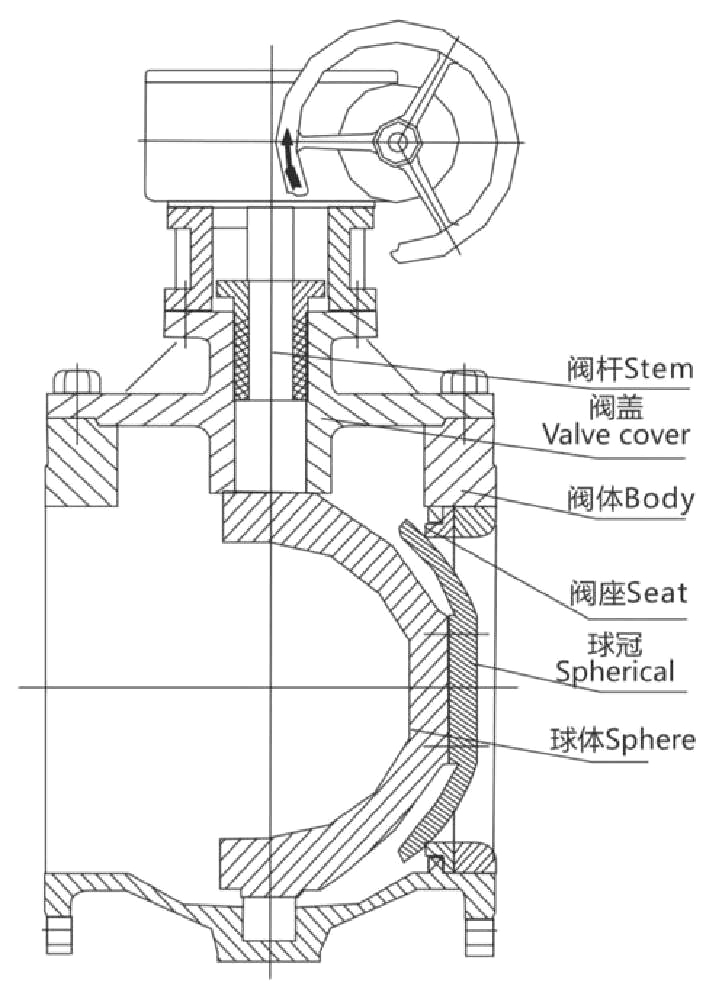

主要零件材料 Implementation of standards

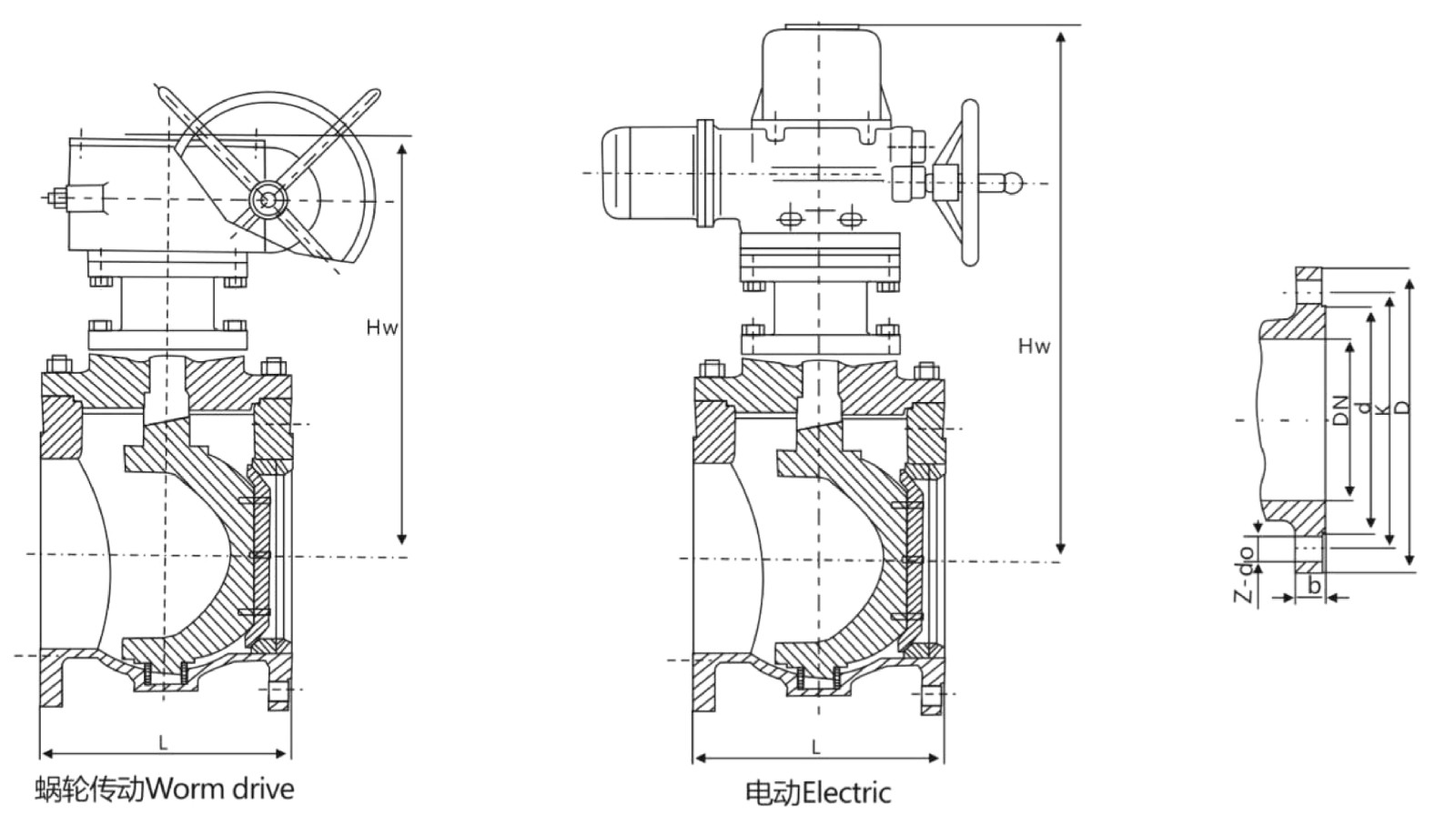

主要连接尺寸Main connection dimensions                         JB/T 79.2-1994

           JB/T 82.1-1994
