低温截止阀 DJ41F-16/40P
我们坚持以客户需求为导向，以技术创新为动力，为您提供从产品选型到技术咨询的全方位服务，助力企业提升蒸汽系统能效，创造更大价值。
详情介绍
低温截止阀CRYOGENIC GLOBE VALVE
DJ41F-16/40P
产品规范
公称压力：1.6MPa
公称通径：10mm～200mm
适用介质：L02、LN2、LAr、LNG、LC2H4等
适用温度：-196～+80℃
连接方式：法兰
介质流向：由阀瓣下面向上流
Product specification
Nominal pressure:1.6 MPa
Nominal size:10 mm to 200 mm
Applicable medium:L02,LN2,LAr,LNG,LC2H4,etc Applicable
temperature:-196～+80℃
Connection mode:flange
Under the medium flow direction:the disc for high

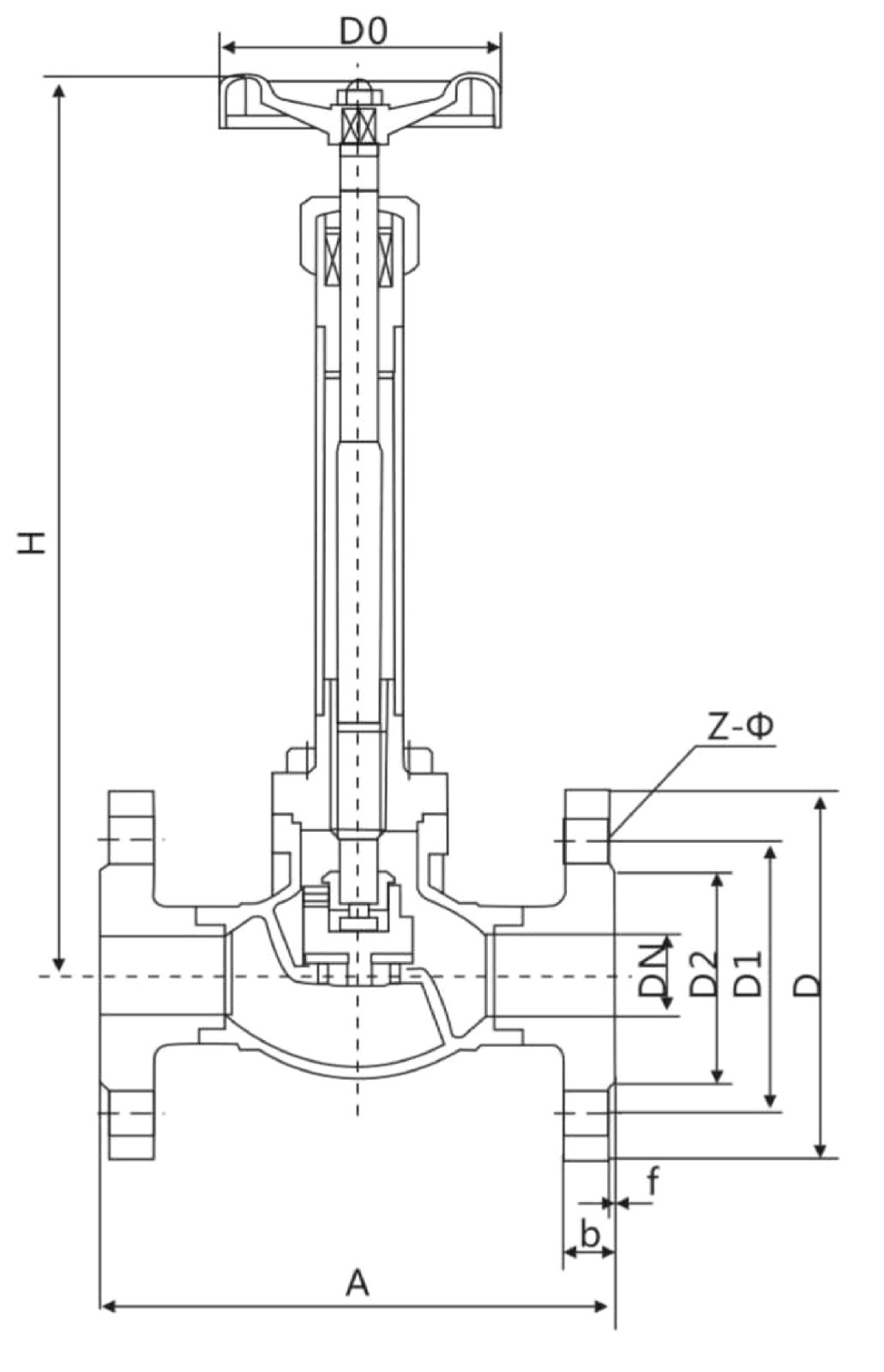

主要外形和连接尺寸 Main external and connection dimension
产品代号 | 通径DN(mm) | 主要连接尺寸Main connecting dimensions | 重量(kg) | |||||||||
A | H1 | H2 | D | D1 | D2 | Z-φd | b | f | Do | |||
222J10AB2A3 | 10 | 130 | 253 | 247 | 90 | 60 | 40 | 4-14 | 16 | 2 | 75 | 3.2 |
222J15AB2A3 | 15 | 130 | 268 | 260 | 95 | 65 | 45 | 4-14 | 16 | 2 | 75 | 3.8 |
222J20AB2A3 | 20 | 150 | 307 | 297 | 105 | 75 | 55 | 4-14 | 16 | 2 | 100 | 5.5 |
222J25AB2A3 | 25 | 160 | 323 | 310 | 115 | 85 | 65 | 4-14 | 16 | 2 | 100 | 5.9 |
222J32AB2A3 | 32 | 180 | 362 | 346 | 135 | 100 | 78 | 4-18 | 18 | 2 | 120 | 7.1 |
222J40AB2A3 | 40 | 200 | 380 | 360 | 145 | 110 | 85 | 4-18 | 18 | 2 | 120 | 11.2 |
222J50AB2A3 | 50 | 230 | 445 | 420 | 160 | 125 | 100 | 4-18 | 20 | 3 | 160 | 17.5 |
222J65AB2A3 | 65 | 290 | 473 | 440 | 180 | 145 | 120 | 8-18 | 20 | 3 | 200 | 18.4 |
222J80AB2A3 | 80 | 310 | 510 | 470 | 195 | 160 | 135 | 8-18 | 22 | 3 | 240 | 30.1 |
222J100AB2A3 | 100 | 350 | 589 | 539 | 215 | 180 | 155 | 8-18 | 22 | 3 | 280 | 40.2 |
222J125AB2A3 | 125 | 400 | 665 | 602 | 245 | 210 | 185 | 8-18 | 24 | 3 | 300 | 53.9 |
222J150AB2A3 | 150 | 480 | 713 | 638 | 280 | 240 | 210 | 8-23 | 26 | 3 | 350 | 68.3 |
222J200AB2A3 | 200 | 600 | 805 | 705 | 375 | 295 | 265 | 12-23 | 30 | 3 | 400 | 134.2 |
222J250AB2A3 | 250 | 650 | 985 | 860 | 405 | 355 | 320 | 12-25 | 32 | 3 | 550 | 248.7 |
222J300AB2A3 | 300 | 750 | 1080 | 930 | 460 | 410 | 370 | 12-25 | 34 | 4 | 650 | 334.5 |
