平板闸阀 (K)WPZ43F/943F/543F/643F、(K)DPZ43F/943F/543F/643F
我们坚持以客户需求为导向，以技术创新为动力，为您提供从产品选型到技术咨询的全方位服务，助力企业提升蒸汽系统能效，创造更大价值。
详情介绍
平板闸阀 FLAT PLATE GATEVALVE
(K)WPZ43F/943F/543F/643F、(K)DPZ43F/943F/543F/643F
平板闸阀的主要特点The main features of plate gate valve
1、本公司引进国外平板闸阀的先进技术，进行了重大的改进，其结构合理，密封可靠，维护方便。
2、闸板、阀座经特殊工艺处理、喷焊硬质合金，聚四氟乙烯，实现双重密封。并可注油脂辅助密封双重保护，密封更可靠，使用寿命更长。
3、本阀独有三重可调式填料结构，确保与阀盖、阀杆密封可靠。法兰连接尺寸按JB/T79, 亦可根据客户要求指定标准生产。
4、有导流孔平板闸阀用于需通球清管的管线，无导流孔的平板闸阀用于不需通球清管的管线上。
5、阀门阀体内腔内压力升高时，阀座可自动退让泄掉过高的压力。
6、本阀传动机构确保阀门启闭灵活，其启闭力矩仅为普通阀门的1/3～1/2。
7、气动闸阀启、闭迅速，带缓冲机构，开闭无冲击，气动、手动转换结构新颖、操作灵活、方便可靠。
8、调节型平板闸阀适用于泵、站出口及其它需调节介质的管路上，调节和截断介质。
9、本阀可广泛适用于天然气、石油、化工、环保等输送管线、放空系统和油、汽储存装置上，用作启闭设备。
10、本公司同时还生产调节型等特殊要求的平板闸阀。
11、电动平板闸阀一般选用扬州电力修造厂或天津二通的电动头，也可根据用户需要选配英国罗括克Rotork(IQ)系列、德国欧玛Aul(SA系列)或由客户在国内选配任何厂家的电动头。
1,The company has introduced foreign advanced technology of flat gate valve and made significant improvement Its structure is reasonable,sealing is reliable and maintenance is convenient
2,Gate and seat are processed by special process and sprayed with cemented carbide and polytetrafluoroethylene to achieve double sealing.And can grease auxiliary seal double protection,seal more reliable, longer service life.
3,The unique triple adjustable packing structure of this valve ensures reliable sealing with bonnet and stem.Flange connection size according to JB/T79,also according to customer requirements specified standards.
4.The plate gate valve with orifice is used in the pipeline requiring ball pigging,and the plate gate valve without orifice is used in the pipeline not requiring ball pigging.
5,valve body cavity pressure rise,the valve seat can be automatically back off from too high pressure.
6,the valve drive mechanism to ensure that the valve open and close flexibly,the opening and closing torque is only1/3~1/2 of the ordinary valve.
7,pneumatic gate valve open and close quickly,with buffer mechanism,open and cose without impact,pneumatic,manual conversion structure,flexible,convenient and reliable.
8,regulating type flat gate valve is suitable for pump,station outlet and other need to adjust the medium of the pipeline,regulation and cut off the medium.
9,the valve can be widely used in natural gas,petroleum,chemical,environmental protection and other transmission pipelines,vent system and oil,gas storage device,as a device for opening and closing.
10,The company also produces flat gate valves for regulating and other special requirements.
11,electric plate gate valve generally choose yangzhou electric power repair factory or tianjin ertong electric head,also according to the needs of users with Rotork(IQ)series,Germany omar Aul(SA series)or by customers in the domestic selection of any manufacturers electric head.
主要零件材料Main parts material
零件名称 | 材料Material | |||
阀体阀盖Body cover | WCB | I | CF8、CF8MCF3、CF3M | 抗硫WCB |
闸板Gate | 不锈钢板、合金板(表面经特殊处理过或焊接硬质合金) | 40Cr(密封面焊硬质合金) | 304L、316L | WCB+STL |
阀座(密封面) | 橡胶、氟塑料、不锈钢、渗氮钢、硬质合金Rubber fluorine plastic,stainless steel,nitrating steel cemented carbide | |||
阀杆Stem | 不锈钢Stainless steel | 318钢Steel | 318钢Steel | 318钢Steel |
阀杆螺母Stem nut | 铝青铜Aluminum bronze | |||
填料Packing | 膨胀石墨Expanded Graphite | 增强氟塑Enhance the fluorine | 聚四氟乙烯PTFE | F4、氟橡胶 |
O形密封圈O-ring | 丁腈橡胶NBR | 丁腈橡胶NBR | 氟橡胶Fluorine rubber | 氟橡胶 |
性能规范和压力试验Performance specifications and pressure test
压力等级 | 常温下试验压力Under normal temperature test pressure(MPa) | 工作压力 | 适用温度 | 适用介质Applicable medium | |||||
液体密封 | 气体密封 | 液体壳体 | 低压密封 | 抗硫型 | 基本型 | ||||
公称压力 | 1.6 | 1.76 | 1.76 | 2.4 | 气体gas | 1.6 | 通用型 | 含H2S和Co2≤ | 非腐蚀性 |
2.5 | 2.75 | 2.75 | 2.75 | 2.5 | |||||
4.0 | 4.4 | 4.4 | 6 | 4.0 | |||||
6.4 | 7.04 | 7.04 | 9.6 | 6.4 | |||||
10.0 | 11 | 11 | 15 | 10.0 | |||||
16.0 | 17.6 | 17.6 | 24 | 16.0 | |||||
25.0 | 27.5 | 27.5 | 37.5 | 25.0 | |||||
磅级 | 150 | 2.3 | 2.3 | 3.1 | 1.93 | ||||
300 | 5.52 | 5.52 | 7.58 | 5.06 | |||||
400 | 7.31 | 7.31 | 10.0 | 6.75 | |||||
600 | 11.03 | 11.03 | 15.0 | 10.12 | |||||
900 | 16.54 | 16.54 | 22.4 | 15.19 | |||||

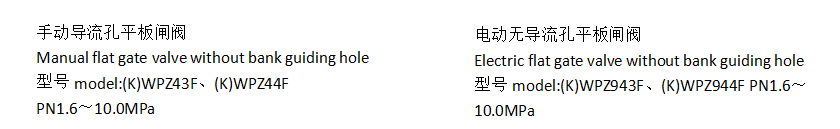

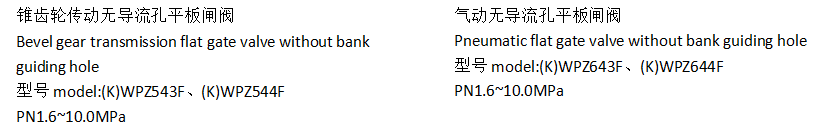

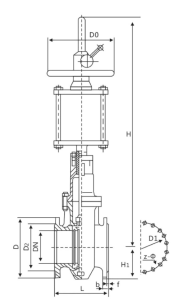

无导流孔平板闸阀 FLAT PLATE GATE VALVE WTHOUT DIVERSION HOLE

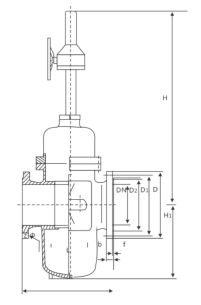

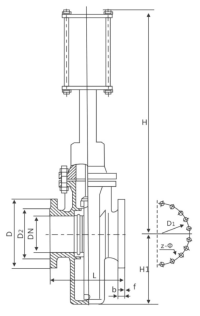

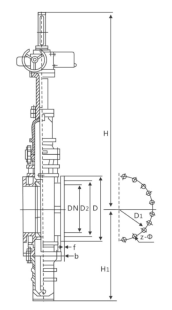

主要外形尺寸及连接尺寸Main external and connection dimension(JB/T79.1-1994)
公称压力 | 公称通径 | 尺寸Size(mm) | |||||||||
L | D | D1 | D2 | D0 | f | b | H | H1 | z-Φ | ||
1.6 | 50 | 178 | 160 | 125 | 100 | 250 | 3 | 16 | 584 | 80 | 4-18 |
65 | 190 | 180 | 145 | 120 | 250 | 3 | 18 | 634 | 95 | 4-18 | |
80 | 203 | 195 | 160 | 135 | 250 | 3 | 20 | 688 | 100 | 8-18 | |
100 | 229 | 215 | 180 | 155 | 300 | 3 | 20 | 863 | 114 | 8-18 | |
125 | 254 | 245 | 210 | 185 | 350 | 3 | 22 | 940 | 132 | 8-18 | |
150 | 267 | 280 | 240 | 210 | 350 | 3 | 24 | 1030 | 150 | 8-23 | |
200 | 292 | 335 | 295 | 265 | 350 | 3 | 26 | 1277 | 168 | 12-23 | |
250 | 330 | 405 | 355 | 320 | 400 | 3 | 30 | 1491 | 203 | 12-25 | |
300 | 356 | 460 | 410 | 375 | 450 | 4 | 30 | 1701 | 237 | 12-25 | |
350 | 381 | 520 | 470 | 435 | 500 | 4 | 34 | 1875 | 265 | 16-25 | |
400 | 406 | 580 | 525 | 485 | 305 | 4 | 36 | 2180 | 300 | 16-30 | |
450 | 432 | 640 | 585 | 545 | 305 | 4 | 40 | 2440 | 325 | 20-30 | |
500 | 457 | 705 | 650 | 608 | 305 | 4 | 44 | 2860 | 360 | 20-34 | |
600 | 508 | 840 | 770 | 718 | 305 | 5 | 48 | 3450 | 425 | 20-41 | |
700 | 610 | 910 | 840 | 788 | 305 | 5 | 50 | 3960 | 460 | 24-41 | |
800 | 660 | 1020 | 950 | 898 | 305 | 5 | 52 | 4550 | 512 | 24-41 | |
900 | 711 | 1120 | 1050 | 998 | 5 | 54 | 5250 | 565 | 28-41 | ||
1000 | 811 | 1255 | 1170 | 1110 | 5 | 56 | 5870 | 630 | 28-48 | ||
2.5 | 50 | 178 | 160 | 125 | 100 | 250 | 3 | 20 | 584 | 80 | 4-18 |
65 | 190 | 180 | 145 | 120 | 250 | 3 | 22 | 634 | 95 | 8-18 | |
80 | 203 | 195 | 160 | 135 | 250 | 3 | 22 | 688 | 100 | 8-18 | |
100 | 229 | 230 | 190 | 160 | 300 | 3 | 24 | 863 | 114 | 8-23 | |
125 | 254 | 270 | 220 | 188 | 350 | 3 | 28 | 940 | 132 | 8-25 | |
150 | 267 | 300 | 250 | 218 | 350 | 3 | 30 | 1030 | 150 | 8-25 | |
200 | 292 | 360 | 310 | 278 | 350 | 3 | 34 | 1277 | 168 | 12-25 | |
250 | 330 | 425 | 370 | 332 | 400 | 3 | 36 | 1491 | 203 | 12-30 | |
300 | 356 | 485 | 430 | 390 | 450 | 4 | 40 | 1701 | 237 | 16-30 | |
350 | 381 | 550 | 490 | 448 | 500 | 4 | 44 | 1875 | 265 | 16-34 | |
400 | 406 | 610 | 550 | 505 | 305 | 4 | 48 | 2180 | 300 | 16-34 | |
450 | 432 | 660 | 600 | 555 | 305 | 4 | 50 | 2440 | 325 | 20-34 | |
500 | 457 | 730 | 660 | 610 | 305 | 4 | 52 | 2860 | 360 | 20-41 | |
600 | 508 | 840 | 770 | 718 | 305 | 5 | 56 | 3450 | 425 | 20-41 | |
700 | 610 | 955 | 875 | 815 | 305 | 5 | 60 | 3960 | 460 | 24-48 | |
800 | 660 | 1070 | 990 | 930 | 305 | 5 | 64 | 4550 | 512 | 24-48 | |
900 | 711 | 1180 | 1090 | 1025 | 5 | 66 | 5250 | 595 | 28-54 | ||
1000 | 811 | 1305 | 1210 | 1140 | 5 | 68 | 5870 | 660 | 28-58 | ||

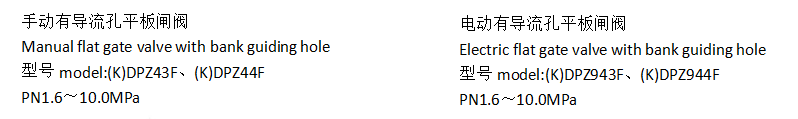

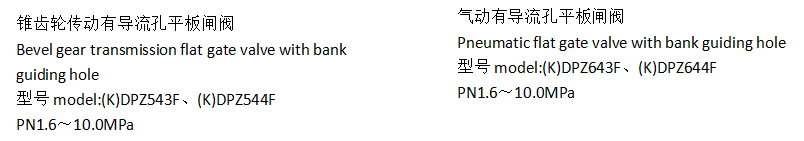

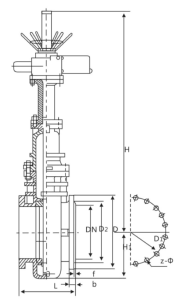

有导流孔平板闸阀 FLAT PLATE GATE VALVE WTH DVERSION HOLE

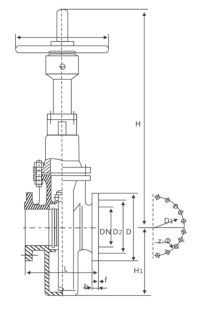

主要外形尺寸及连接尺寸Main external and connection dimension(JB/T79.1-1994)
公称压力 | 公称通径 | 尺寸Size(mm) | |||||||||
L | D | D1 | D2 | D0 | f | b | H | H1 | z-Φ | ||
1.6 | 50 | 178 | 160 | 125 | 100 | 250 | 3 | 16 | 584 | 8122 | 4-18 |
65 | 190 | 180 | 145 | 120 | 250 | 3 | 18 | 634 | 154 | 4-18 | |
80 | 203 | 195 | 160 | 135 | 250 | 3 | 20 | 688 | 169 | 8-18 | |
100 | 229 | 215 | 180 | 155 | 300 | 3 | 20 | 863 | 193 | 8-18 | |
125 | 254 | 245 | 210 | 185 | 350 | 3 | 22 | 940 | 215 | 8-18 | |
150 | 267 | 280 | 240 | 210 | 350 | 3 | 24 | 1030 | 283 | 8-23 | |
200 | 292 | 335 | 295 | 265 | 350 | 3 | 26 | 1277 | 352 | 12-23 | |
250 | 330 | 405 | 355 | 320 | 400 | 3 | 30 | 1491 | 440 | 12-25 | |
300 | 356 | 460 | 410 | 375 | 450 | 4 | 30 | 1701 | 514 | 12-25 | |
350 | 381 | 520 | 470 | 435 | 500 | 4 | 34 | 1875 | 602 | 16-25 | |
400 | 406 | 580 | 525 | 485 | 305 | 4 | 36 | 2180 | 678 | 16-30 | |
450 | 432 | 640 | 585 | 545 | 305 | 4 | 40 | 2440 | 785 | 20-30 | |
500 | 457 | 705 | 650 | 608 | 305 | 4 | 44 | 2860 | 855 | 20-34 | |
600 | 508 | 840 | 770 | 718 | 305 | 5 | 48 | 3450 | 1045 | 20-41 | |
700 | 610 | 910 | 840 | 788 | 305 | 5 | 50 | 3960 | 1190 | 24-41 | |
800 | 660 | 1020 | 950 | 898 | 305 | 5 | 52 | 4550 | 1350 | 24-41 | |
900 | 711 | 1120 | 1050 | 998 | 5 | 54 | 5250 | 1510 | 28-41 | ||
1000 | 811 | 1255 | 1170 | 1110 | 5 | 56 | 5870 | 1715 | 28-48 | ||
2.5 | 50 | 178 | 160 | 125 | 100 | 250 | 3 | 20 | 584 | 8122 | 4-18 |
65 | 190 | 180 | 145 | 120 | 250 | 3 | 22 | 634 | 154 | 8-18 | |
80 | 203 | 195 | 160 | 135 | 250 | 3 | 22 | 688 | 169 | 8-18 | |
100 | 229 | 230 | 190 | 160 | 300 | 3 | 24 | 863 | 193 | 8-23 | |
125 | 254 | 270 | 220 | 188 | 350 | 3 | 28 | 940 | 215 | 8-25 | |
150 | 267 | 300 | 250 | 218 | 350 | 3 | 30 | 1030 | 283 | 8-25 | |
200 | 292 | 360 | 310 | 278 | 350 | 3 | 34 | 1277 | 352 | 12-25 | |
250 | 330 | 425 | 370 | 332 | 400 | 3 | 36 | 1491 | 440 | 12-30 | |
300 | 356 | 485 | 430 | 390 | 450 | 4 | 40 | 1701 | 514 | 16-30 | |
350 | 381 | 550 | 490 | 448 | 500 | 4 | 44 | 1875 | 602 | 16-34 | |
400 | 406 | 610 | 550 | 505 | 305 | 4 | 48 | 2180 | 678 | 16-34 | |
450 | 432 | 660 | 600 | 555 | 305 | 4 | 50 | 2440 | 785 | 20-34 | |
500 | 457 | 730 | 660 | 610 | 305 | 4 | 52 | 2860 | 855 | 20-41 | |
600 | 508 | 840 | 770 | 718 | 305 | 5 | 56 | 3450 | 1045 | 20-41 | |
700 | 610 | 955 | 875 | 815 | 305 | 5 | 60 | 3960 | 1190 | 24-48 | |
800 | 660 | 1070 | 990 | 930 | 305 | 5 | 64 | 4550 | 1350 | 24-48 | |
900 | 711 | 118 | 1090 | 1025 | 5 | 66 | 5250 | 1510 | 28-54 | ||
1000 | 811 | 1305 | 1210 | 1140 | 5 | 68 | 5870 | 1715 | 28-58 | ||
